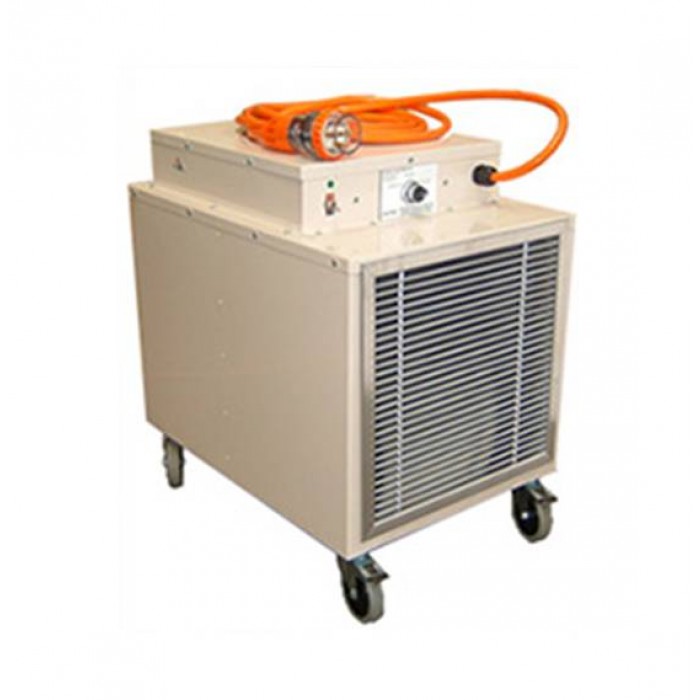

  • H2030 - Fan Blower Heater - 21kW, Hot Box


Product Code: 1349

'Hot Box'
21kW Fan Blower Heater

Heating Capacity: 10.5 - 21kW

Power Supply: 3 Phase, 400V
Running Current (per phase): 29.2 Amps
Plug: 5 Pin, 32 Amps, Clipsal 56P532
Cable Length: 2.5m

Over temperature safety cutout and manual re-set button
(temperature of intake air should not exceed 75 deg C)
Air Flow 450 L/S (can be run fan only for air movement and ventilation)

Dimensions: 660mm x 480mm wide x 700mm high (nominal)
Net Weight (approx): 50kg

Hot Boxes are ideal for room heating in areas such as drying rooms, greenhouses, industrial locker rooms, low temp industrial ovens and more. The Hot box is a free standing heater which runs with relatively low noise levels.

Centrifugal units are also supplied with castor wheels for ease of movement
and a fan run on timer for safety.

Hot Box units can also be coupled to a ducting system
