10kW
Product Code: AT10

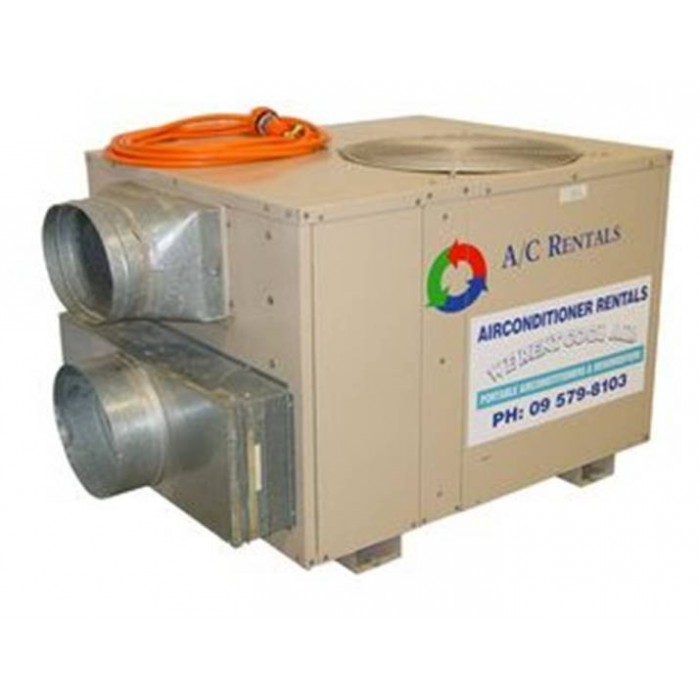

'Temperzone OPA 101'
10kW Packaged Air Conditioner (installed on a base frame which is fitted with castering wheels)
Cooling Capacity: 10kW
Heating Capacity: 10kW
Air Flow: 625 litres/sec
Power Supply: 3 phase, 400v, 50Hz, AC
Running Amps (per phase): 8.6 / 5.7 / 5.5
Plug: 5 Pin, 16 Amps, PDL 56P516
Cable Length: 10m
Supply Air Duct: 1 x 300mm dia.
Return Air Duct (optional): 1 x 300mm dia.
Dimensions: 1.200m x 1.200m x 1.200m (nominal)
Net Weight (approx): 150kg
