Product Code: AT15

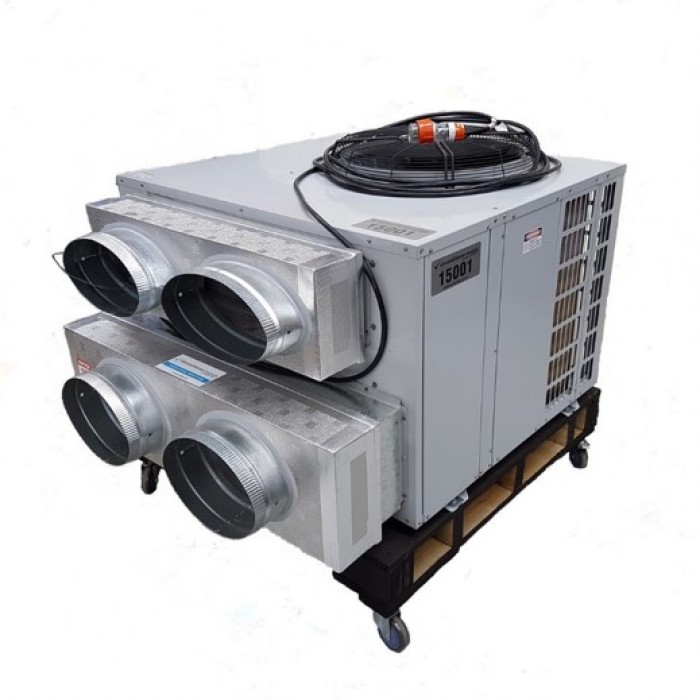

'Temperzone OPA 155'
15kW Packaged Air Conditioner (installed on a base frame which is fitted with castering wheels)

Cooling Capacity: 15.2kW
Heating Capacity: 15.6kW
Air Flow: 850 litres/sec

Power Supply: 3 phase, 400v, 50Hz, AC
Running Amps (per phase): 11 / 8 / 8
Plug: 5 pin, 32 Amps, PDL 56P532
Cable Length: 12m
Thermostat Remote Control Cable Length: 8m

Supply Air Duct: 2 x 300mm elliptical
Dimensions: 1.440m x 1.200m x 1.200m high (nominal)
Total Weight with Lifting Frame (approx): 250kg
