A3400 - Air Conditioner - Packaged, 60kW

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • A3400 - Air Conditioner - Packaged, 60kW

60kW

Product Code: AT60

'Temperzone OPA 600'

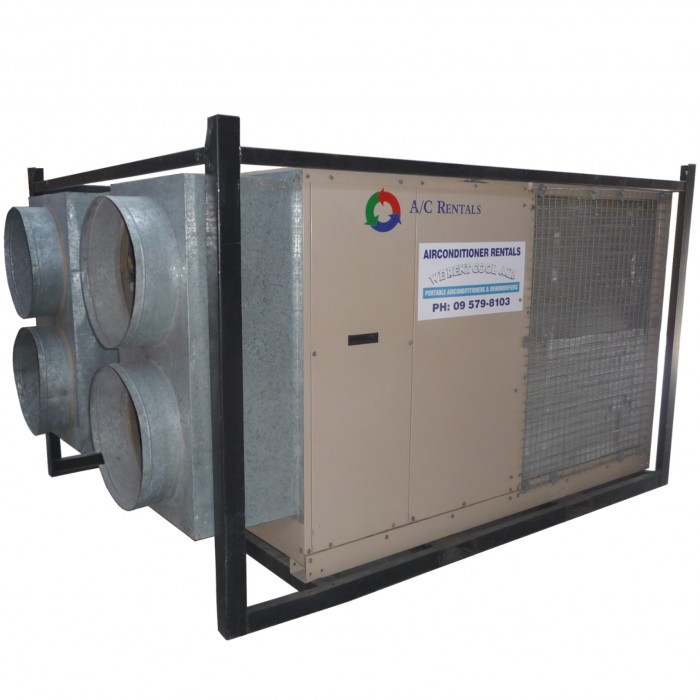

60kW Packaged Air Conditioner (installed within a perimeter frame)

Cooling Capacity: 60kW
Heating Capacity: 60kW
Air Flow: 3600 litres/sec.

Power Supply: 3 phase, 400v, 50Hz, AC
Running Amps (per phase): 41 / 42 / 44
Plug: 6 pin, 63 Amps, Gewiss
Cable Length: 8.0m

Supply Air Duct: 2 x 500mm dia.
Return Air Duct (optional): 1 x 500mm dia.
Dimensions: 2.850m x 2.100m x 1.660m high (nominal)
Net Weight (approx): 1104kg
